WAF vs Firewall: How They Work and When You Need Both

When organizations begin strengthening their cybersecurity posture, one of the most common questions security teams ask is about WAF vs firewall. At first glance, these two technologies may appear similar because both monitor and filter traffic. However, they operate at different layers of the network stack and address very different types of threats.

A traditional firewall focuses on controlling network-level traffic between trusted and untrusted environments, while a Web Application Firewall focuses on protecting web applications from sophisticated attacks targeting application logic. Understanding how these two security layers differ, and how they complement each other, is essential for building a resilient security architecture.

This guide explains the practical differences, use cases, and deployment considerations so businesses can make informed decisions when protecting modern web infrastructure.

Understanding What a Web Application Firewall Does

A Web Application Firewall (WAF) is a specialized security solution designed to protect web applications by filtering and monitoring HTTP and HTTPS traffic between users and a website or application.

Unlike traditional security controls that focus on network packets, a WAF inspects application-layer traffic. This means it can analyze requests sent to web applications and block malicious behaviour before it reaches the backend server.

Typical threats mitigated by WAF systems include:

• SQL injection attacks
• Cross-site scripting (XSS)
• Remote file inclusion
• Cookie poisoning
• Application-layer DDoS attacks
• Malicious bots and automated scanning

Because modern attacks frequently exploit vulnerabilities in web applications rather than network infrastructure, many organizations deploy an advanced web application firewall that can detect behavioural anomalies, bot activity, and complex attack signatures.

Modern WAF solutions often integrate with edge networks and include additional features such as bot detection, behavioural analysis, and rate limit controls that prevent attackers from overwhelming login pages, APIs, or sensitive endpoints.

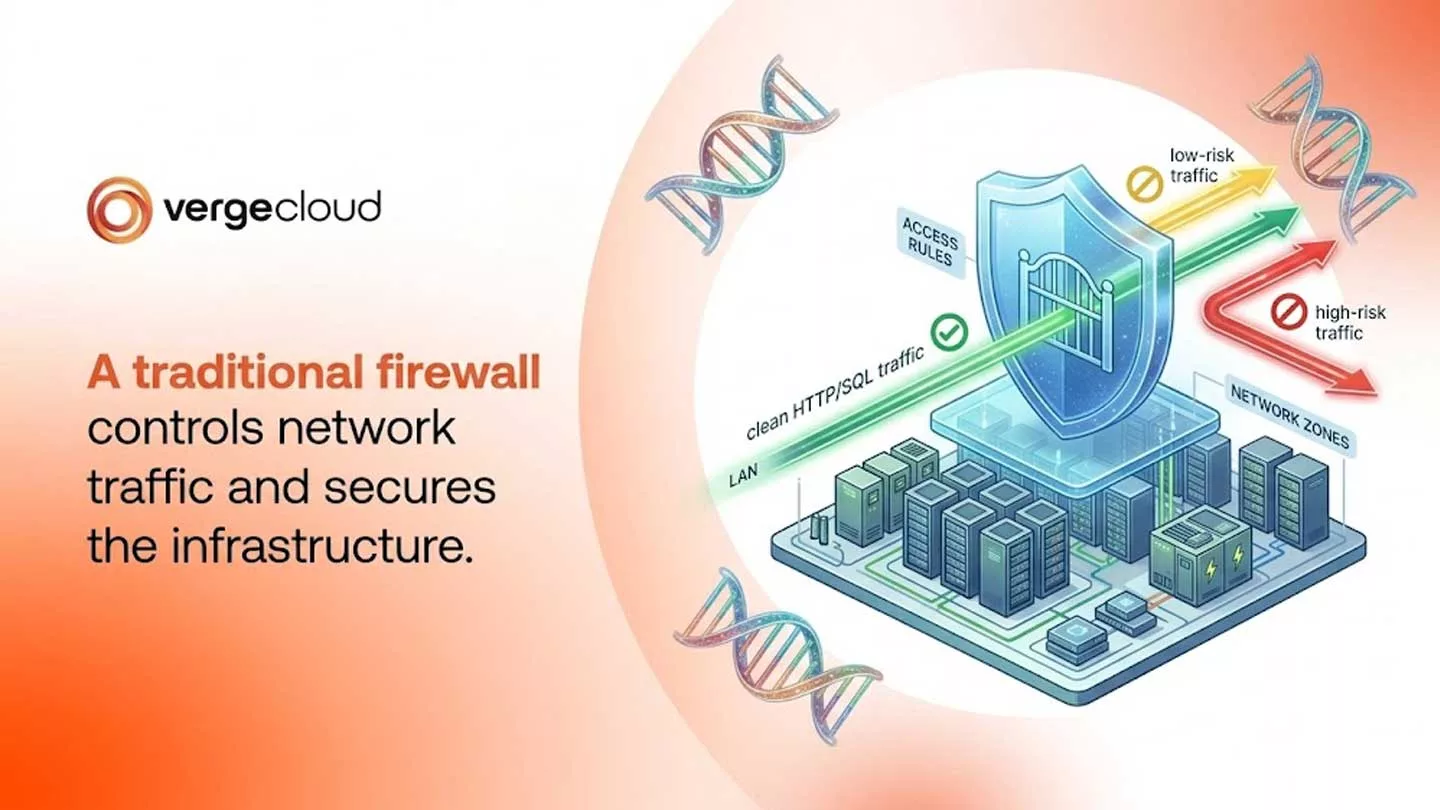

What a Traditional Firewall Is and How It Works

A firewall is one of the oldest and most fundamental security technologies in networking. Its primary purpose is to monitor and control traffic entering or leaving a network based on predefined security rules.

Traditional firewalls operate at lower layers of the OSI model, particularly:

• Layer 3 (Network layer)
• Layer 4 (Transport layer)

This means they primarily inspect information such as:

• IP addresses
• Ports
• Protocols
• Packet headers

Using these parameters, a firewall can determine whether traffic should be allowed, blocked, or logged.

For example, a firewall might allow outbound HTTP traffic while blocking inbound connections to sensitive internal services. Many organizations also use firewalls as part of advanced firewall integration strategies where network protection is combined with intrusion detection systems and endpoint monitoring.

While firewalls are extremely effective at preventing unauthorized network access, they cannot inspect the deeper structure of HTTP requests or detect application-level vulnerabilities.

Key Differences Between WAF and Firewall

Although both technologies are designed to protect digital infrastructure, a Web Application Firewall and a traditional firewall operate in different layers of security and address different categories of threats. Understanding these distinctions helps organizations design a more effective protection strategy for modern web environments.

Below are the most important areas where these technologies differ.

Security Layer and Visibility

One of the most fundamental differences lies in the layer of the network stack where each technology operates.
A traditional firewall works primarily at Layer 3 and Layer 4 of the OSI model. It evaluates network traffic based on IP addresses, ports, and protocols to determine whether a connection should be allowed or blocked. This makes it effective for controlling network-level access and protecting internal infrastructure.
A WAF operates at Layer 7, the application layer, where web traffic such as HTTP and HTTPS requests is processed. Because it analyzes the structure of web requests, it can inspect parameters, form inputs, cookies, headers, and session data. This deeper visibility allows it to detect malicious patterns hidden inside otherwise legitimate traffic.

Type of Attacks Each Technology Stops

Another major distinction is the type of threats each solution is designed to prevent. Traditional firewalls are effective at stopping infrastructure-level threats such as:

• Unauthorized network access attempts
• Port scanning and reconnaissance
• IP spoofing
• Certain protocol-based attacks
• Suspicious inbound or outbound connections

A WAF, however, focuses on application-layer attacks that specifically target web applications. These include:

• SQL injection attacks that attempt to manipulate databases
• Cross-site scripting (XSS) attacks that inject malicious scripts
• Remote file inclusion exploits
• Malicious API requests
• Session manipulation and authentication abuse

Because modern cyberattacks frequently target web applications rather than network devices, application-layer protection has become increasingly important.

Depth of Traffic Inspection

The depth of traffic analysis also differs significantly.

Firewalls primarily analyze packet metadata, such as source IP address, destination IP, protocol type, and port number. While this is useful for enforcing access control rules, it does not reveal what the traffic actually contains.

A WAF goes further by inspecting the content of web requests. It can analyze request bodies, URL parameters, form submissions, cookies, and JSON payloads. This allows the system to detect suspicious input patterns that may indicate an attack.

For example, a firewall might allow a request because it arrives on port 443, while a WAF could block the same request if it contains a SQL injection payload hidden within a form field.

Deployment Location in the Infrastructure

Where each technology is placed within the architecture also highlights its distinct roles.

Firewalls are typically deployed at the network perimeter, between internal networks and external connections. They often sit at gateways, routers, or cloud network boundaries where they control traffic entering or leaving the infrastructure.

WAFs are usually positioned directly in front of web applications, often within reverse proxies, load balancers, or CDN edge nodes. In many modern architectures, they operate as part of broader edge security solutions, protecting applications before requests reach the origin servers.

This strategic placement allows WAFs to intercept malicious traffic at the earliest stage of application interaction

Protection Scope and Focus

The scope of protection also differs.

A firewall protects the network environment, including internal systems, servers, and devices. Its primary goal is to prevent unauthorized network communication.

A WAF protects the web application itself, including APIs, login systems, payment pages, and user-facing services. It focuses on safeguarding application logic and preventing attackers from exploiting vulnerabilities in the software.

In other words, firewalls protect the infrastructure, while WAFs protect the application layer built on top of that infrastructure.

Traffic Behaviour and User Interaction Awareness

Another important difference is the level of awareness each system has about user behaviour and application logic.

Traditional firewalls treat traffic as packets moving between endpoints. They generally do not understand how users interact with an application or whether a request sequence is suspicious.

A WAF can evaluatebehavioural patterns, such as repeated login attempts, unusual request rates, or abnormal API usage. For example, administrators can configure a rate limit rule that restricts how many requests a single client can send to a login endpoint within a short time period, helping prevent brute-force attacks.

This behavioural awareness makes WAFs especially valuable for protecting modern APIs and authentication systems.

Protection Against Modern Bot and Automation Attacks

Automated attacks have become one of the most common threats targeting web applications. Credential stuffing, scraping, and vulnerability scanning are often performed by bots rather than human attackers.

Traditional firewalls are not designed to detect sophisticated bot traffic because these requests may appear legitimate at the network level.

Modern WAF solutions, however, incorporate behavioural detection techniques, client fingerprinting, and anomaly analysis to identify automated traffic patterns. This makes them far more effective at blocking bot-driven attacks that bypass simple network rules.

Scalability and Cloud Integration

Another practical difference lies in how these technologies scale within cloud environments.

Traditional firewalls were originally designed for on-premise networks, though many modern versions now support cloud infrastructure. They still primarily function as network gatekeepers.

Cloud-based WAF solutions are designed to scale automatically with increasing web traffic and often integrate seamlessly with next-gen CDNs and multi-cloud load balancing setups. This integration ensures optimal performance and security, making WAFs ideal for high-traffic websites, SaaS platforms, and API-driven applications.

Complementary Roles in a Modern Security Architecture

Because of these differences, comparing these technologies as alternatives can be misleading. In reality, they address different layers of the threat landscape.

A firewall provides foundational network protection, while a WAF adds specialized defence against web application attacks. When deployed together, they create a layered security model that protects both infrastructure and application logic.

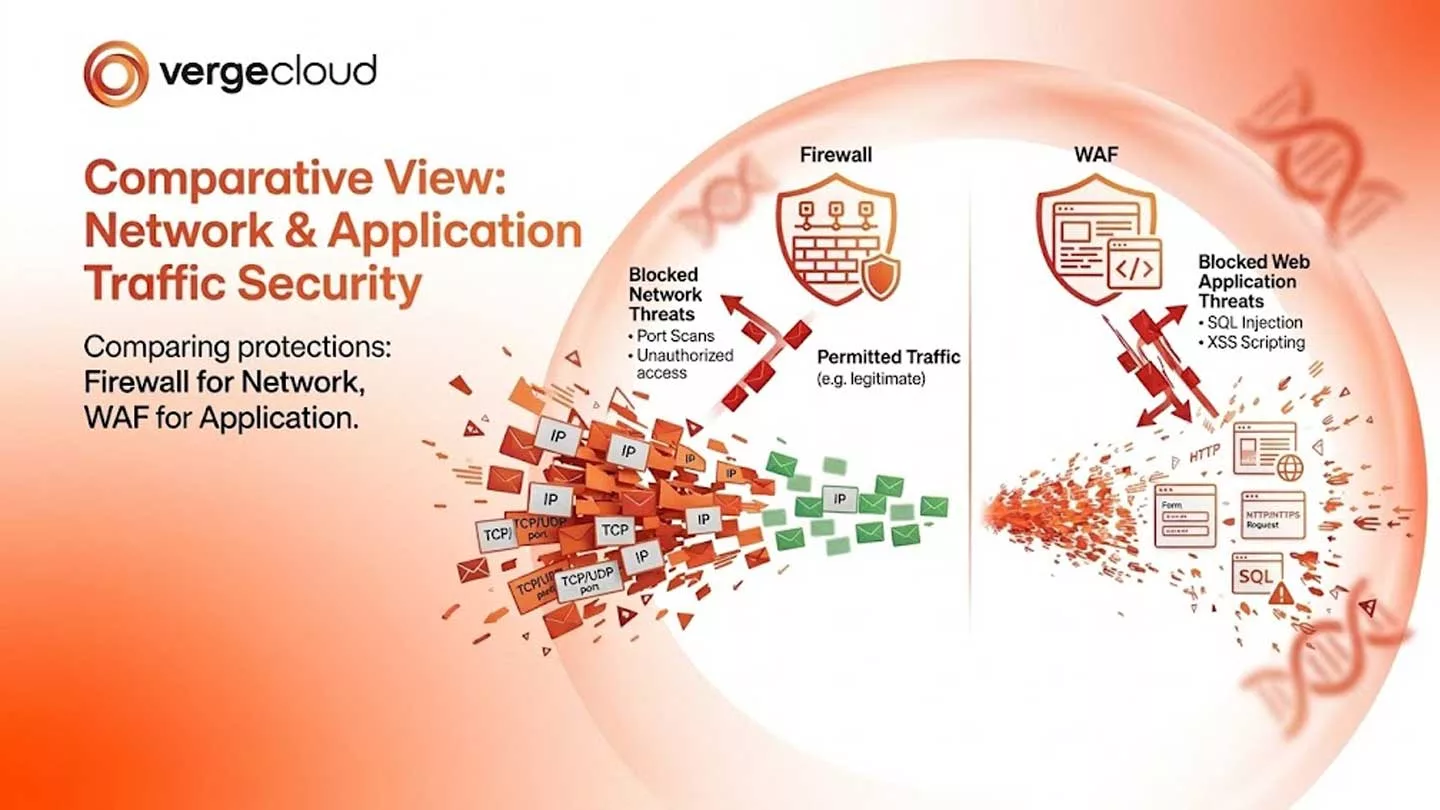

Network Traffic Versus Application Traffic

One of the most important conceptual distinctions between these technologies is the difference between network traffic and application traffic.

Network traffic refers to raw data packets transmitted between systems across the Internet. Firewalls analyze these packets based on IP addresses, protocols, and connection states.

Application traffic, on the other hand, consists of structured requests sent to web applications through protocols such as HTTP and HTTPS. These requests include parameters, cookies, headers, and user inputs.

Attacks at this layer are often far more subtle because they appear to be legitimate requests. For example, a malicious SQL injection attempt might be hidden within a normal-looking form submission.

WAF technologies are designed specifically to analyze these types of requests, detect suspicious patterns, and block them before they reach the application server.

Why Many Organizations Use Both Together

Rather than choosing between them, most modern security architectures deploy both technologies simultaneously.

A firewall acts as the first line of defence by filtering unwanted network traffic and blocking unauthorized connections. Behind this layer, a WAF provides specialized protection for web applications. This layered approach is often referred to as defence-in-depth. For example:

1. The firewall blocks malicious IP addresses or suspicious ports.
2. The WAF inspects traffic that passes through.
3. The WAF analyzes request behaviour and blocks application-layer attacks.

In high-risk environments, organizations also implement additional tools such as advanced DDoS mitigation platforms that absorb large-scale attacks before they impact application performance.

Some architectures include protections like layer 4 shield systems that filter volumetric attacks before they reach application-layer defences.

Together, these layers form a multi-stage security system capable of addressing both infrastructure and application threats.

Additional Detection Techniques Used in Modern WAF Systems

Modern cyber threats are increasingly sophisticated, and traditional rule-based filtering alone is often insufficient.

Advanced WAF platforms now incorporate behavioural and fingerprinting techniques to identify malicious clients. One example is the use of Ja3 fingerprint technology, which analyzes TLS handshake characteristics to identify suspicious clients even when they attempt to disguise themselves.

By analyzing connection fingerprints, security systems can detect automated attack tools, malicious scanners, and botnets more accurately than simple IP blocking alone.

This capability significantly improves protection against bot-driven credential stuffing and reconnaissance attacks.

Choosing the Right Protection Strategy for Your Business

Selecting the right security approach depends on several factors, including the nature of your applications, traffic volume, and threat exposure.

Organizations that primarily need to control internal network access may rely heavily on firewall-based security. However, businesses that operate web applications, APIs, or SaaS platforms require application-layer protection.

A good evaluation process should consider:

• Whether your organization hosts public-facing web applications
• The volume of API traffic your systems handle
• The sensitivity of the data stored within your applications
• Compliance requirements for cybersecurity frameworks
• The expected scale of potential DDoS attacks

In most cases, the best approach is not to choose one technology over another, but to combine multiple security layers tailored to the organization’s threat landscape.

Key Factors to Consider When Implementing WAF or Firewall Protection

Before deploying either security solution, organizations should carefully evaluate several implementation considerations.

• Traffic visibility and logging: Security tools should provide clear insight into incoming traffic patterns, attack attempts, and blocked requests. Detailed logging improves incident response and threat analysis.
• Scalability: As businesses grow, traffic volumes increase. Security infrastructure must scale without introducing performance bottlenecks.
• Integration with existing security tools: Effective security ecosystems integrate firewalls, monitoring platforms, and application protection into a unified system rather than isolated solutions.
• Performance impact: Improper configuration of filtering rules may introduce latency. Testing and optimization are critical to ensure that protection does not degrade user experience.
• Continuous rule updates: Attack techniques evolve rapidly. Security policies and detection rules must be continuously updated to remain effective.

Conclusion

Understanding WAF vs firewall is essential for designing a modern cybersecurity strategy. While both technologies serve protective roles, they address different parts of the threat landscape.

A firewall protects the network perimeter by controlling traffic based on IP addresses, ports, and protocols. A Web Application Firewall, on the other hand, protects web applications by analyzing HTTP requests and blocking malicious payloads.

Because modern cyberattacks often combine network and application techniques, the most effective defence strategy is a layered architecture that integrates both technologies. Organizations that deploy firewalls, WAF protection, and complementary security services gain far greater resilience against the wide spectrum of threats targeting today’s internet-facing systems.
